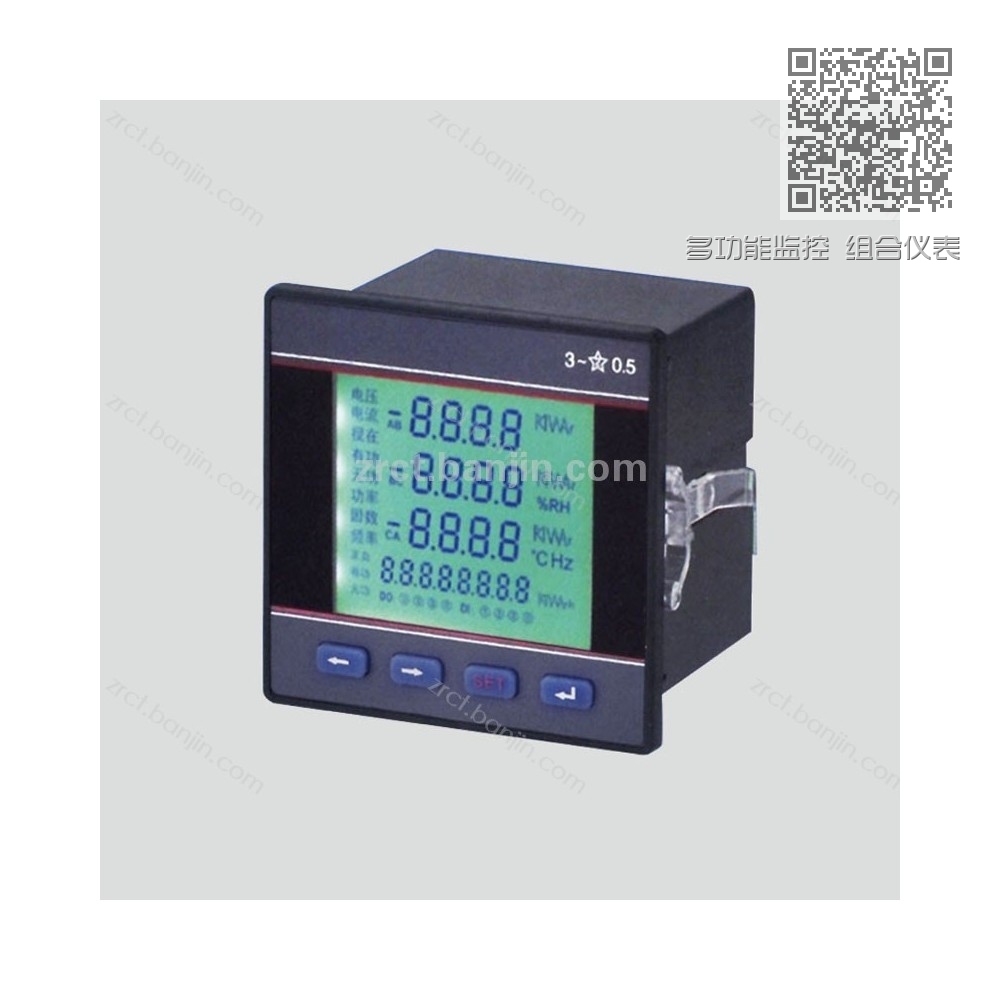

多功能监控组合仪表

电力仪表系列产品多功能监控、组合仪表

Electric Power Instrument Series Products

Multifunctional Monitoring and Combination Instrument

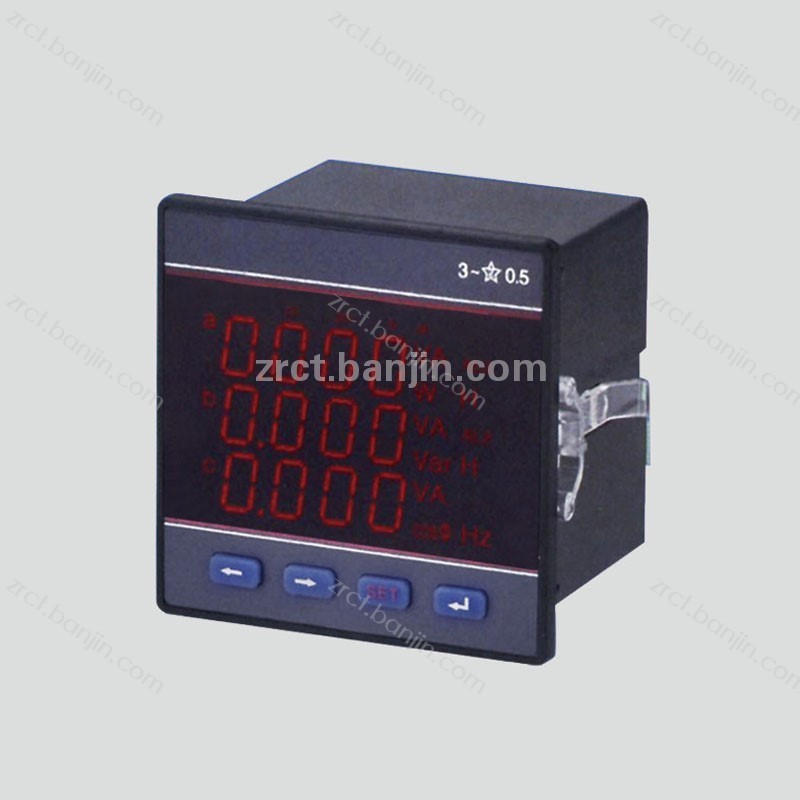

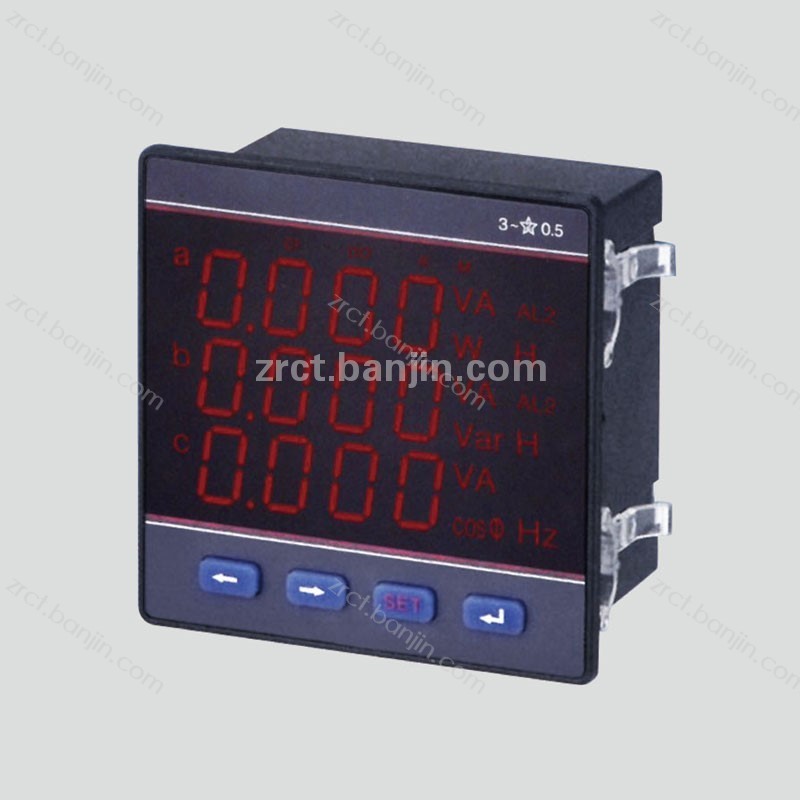

多功能监控仪表

Multifunctional Monitoring Instrument

多功能监控仪表是高性能的监控仪表，具有高精度电力参数实时测量、谐波测量、正反向有功/无功电能计量、分时电能计量、分时电能定时抄表、电力品质分析、实时波形显示、事件记录、需量等功能，并配置有丰富的输入输岀接口可用于现场设备状态的监测与控制，还集成了RS-485通讯接口，可与各种智能配电系统和能量管理系统集成,共享丰富的监测数据和电能质量数据。

多功能监控仪表有着极高的性价比，可以直接取代常规电力变送器、测量仪表、电能计量表以及相关的辅助单元，应用领域非常广泛,如能源管理系统、电力监控系统、工矿企业、公共设施、智能建筑和开关柜等配电网络系统。

Multi-functional monitoring instrument is a high-performance monitoring instrument, with high precision real-time measurement of power parameters, harmonic measurement, positive and negative active/reactive electrical energy measurement, time-sharing power measurement, time-sharing power timing meter reading, power quality analysis, real-time waveform display, event recording, demand and other functions. In addition, multi-function monitoring instrument is configured with rich input and output reports interface, which can be used for monitoring and control of field equipment status, and also integrates RS-485 communication interface, which can be integrated with various intelligent distribution systems and energy management systems to share rich monitoring data and power quality data.

Multifunctional monitoring instrument has a very high cost performance ratio. It can directly replace conventional power transmitters, measuring instruments, energy meters and related auxiliary units. It has a wide range of applications, such as energy management system, power monitoring system, industrial and mining enterprises, public facilities, intelligent buildings and switchgear distribution network systems.

性能特点 Performance characteristics

◆ 高精度测量三相电压、三相电流、有功功率、无功功率、视在功率、功率因数、频率等电参量;

◆ 正反向有功/无功电能计量;

◆ 分时电能计量、分时电能定时抄表;

◆ 测量三相电压、三相电流的总谐波畸变率(THD),2-31次奇次谐波分量;

◆ 提供数码管或液晶显示，本地数据查询;

◆ 菜单直观,按键操作简单;

◆ 电流、电压变比可编程;

◆ 提供多回路控制节点，可用于报警、跳闸等控制;

◆ 支持消防联动，远程切断故障回路;

◆ 支持RS-485通讯, Modbus-RTU协议;

◆ 支持开关量输入、开关量输岀、模拟量变送输出、电能脉冲输出;

◆ 安装方便,接线简单,工程量小;

◆ 宽范围交直流通用电源:AC/DC 80V~270V;

◆ 可完成 SCADA、PLC中多种通讯软件的组网。

◆ High-precision measurement of three-phase voltage, three-phase current, active power, reactive power, apparent power, power factor, frequency and other electrical parameters;

◆ Positive and reverse active/reactive electrical energy metering;

◆ Time-sharing electric energy metering, time-sharing electric energy timing meter reading;

◆ Measure the total harmonic distortion rate (THD) of three-phase voltage and three-phase current,2-31 odd harmonic components;

◆ Provide digital tube or LCD display, local data query;

◆ The menu is intuitive and the key operation is simple.

◆ Current and voltage ratio can be programmed;

◆ Provide multi-loop control nodes, which can be used for alarm, trip control, etc.

◆ Supporting fire fighting linkage and remotely disconnecting fault circuit;

◆ Support RS-485 communication, Modbus-RTU protocol;

◆ Support switching input, switching output, analog output and power pulse output;

◆ Easy installation, simple wiring, small amount of work;

◆ Wide range AC/DC universal power supply: AC/DC 80V~270V;

◆ It can complete the networking of various communication software in SCADA and PLC.

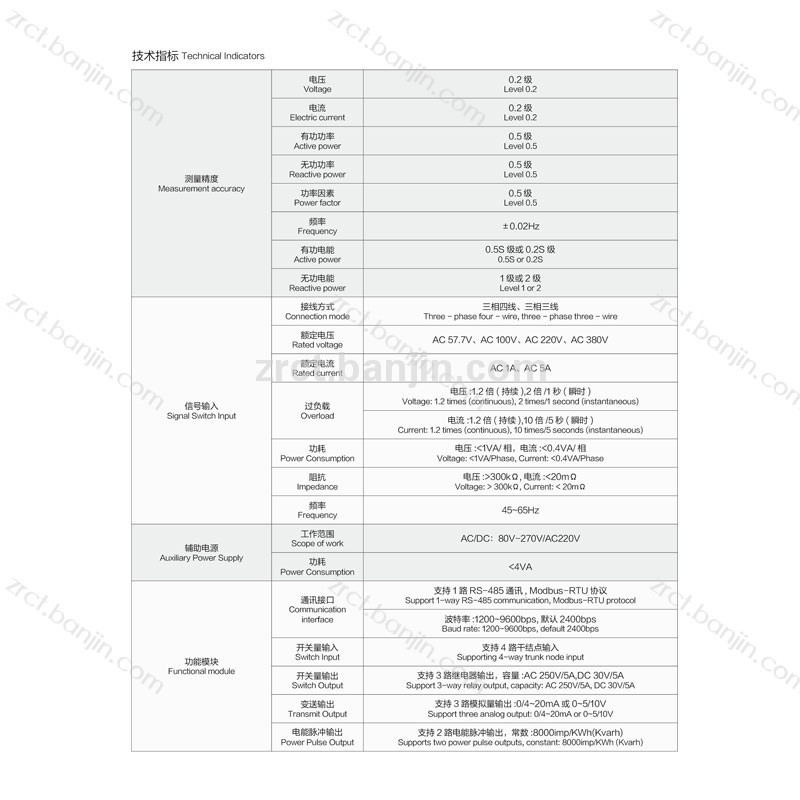

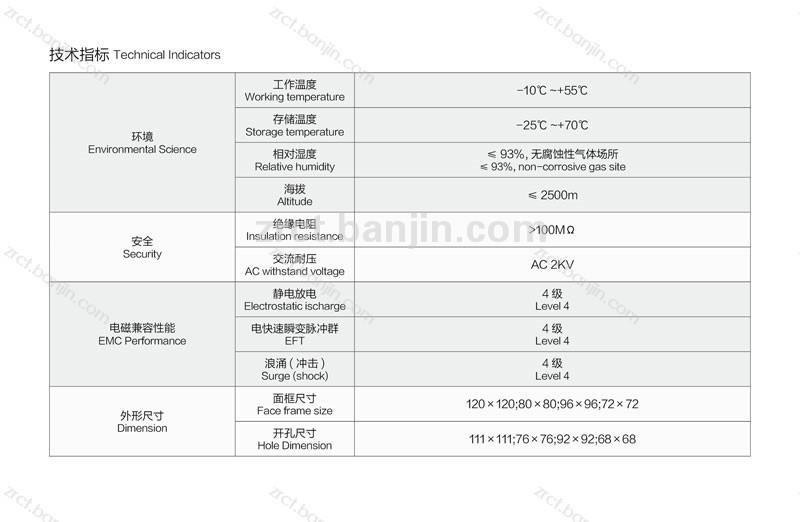

产品标准

GB/T 22264.1-2008 安装式数字显示电测量仪表第1部分:

定义和通用要求

GB/T 22264.7-2008 安装式数字显示电测量仪表第7部分:

多功能仪表的特殊要求

GB/T 22264.8-2008 安装式数字显示电测量仪表第8部分:

推荐的并验方法

GB/T 17215.322-2008 交流电测量设备一特殊要求-第22部

分:静止式有功电能表(0.2S级和0.5S级)

GB/T 17215.323-2008 交流电测量设备一特殊要求-第23部

分:静止式无功电能表(2级和3级)

DL/T 614-2007 多功能电能表

GB14287-2005 电气火灾监控系统

GB50045-95 高层民用建筑设计防火规范

GB50054-95 低压配电设计规范

GB50096 住宅设计规范

GB13955-2005 剩余电流动作保护装置的安装和运行

GB50016-2006 建筑设计防火规范

Product Standards

GB/T 22264.1-2008 installed digital display electrical measuring instruments Part 1:

Definition and general requirements

GB/T 22264.7-2008 installed digital display electrical measuring instruments Part 7:

Special requirements for multifunctional instruments

GB/T 22264.8-2008 installed digital display electrical measuring instruments Part 8:

Recommended parallel test method

GB/T 17215.322-2008 special requirements for ac measuring equipment - Part 22:

Static active electrical energy meter (0.2s and 0.5s)

GB/T 17215.323-2008 special requirements for ac measuring equipment - Part 23:

Static reactive electrical energy meter (levels 2 and 3)

DL/T 614-2007 Multifunctional electric energy meter

GB14287-2005 electrical fire monitoring system

Code for fire protection of high-rise civil architecture design GB50045-95

Design specification for low voltage distribution GB50054-95

GB50096 residential design code

Installation and operation of residual current action protection device GB13955-2005

Code for fire protection of building design GB50016-2006

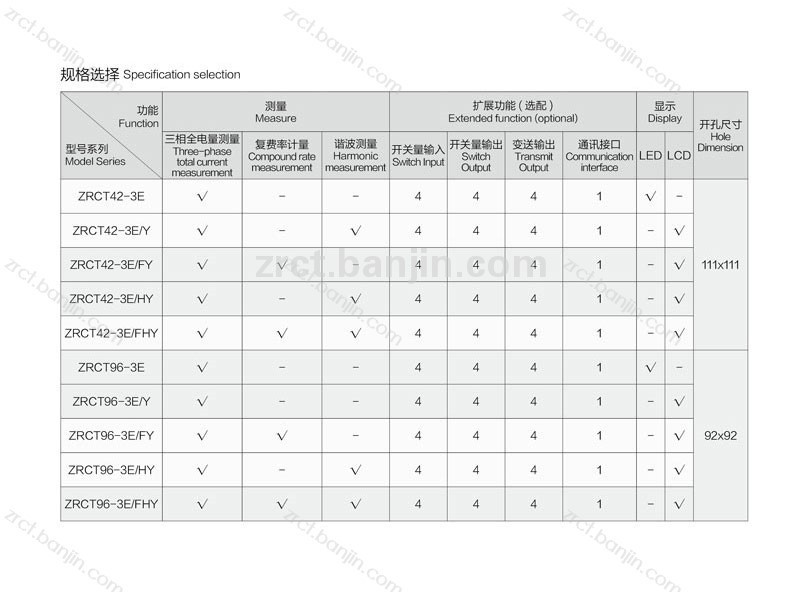

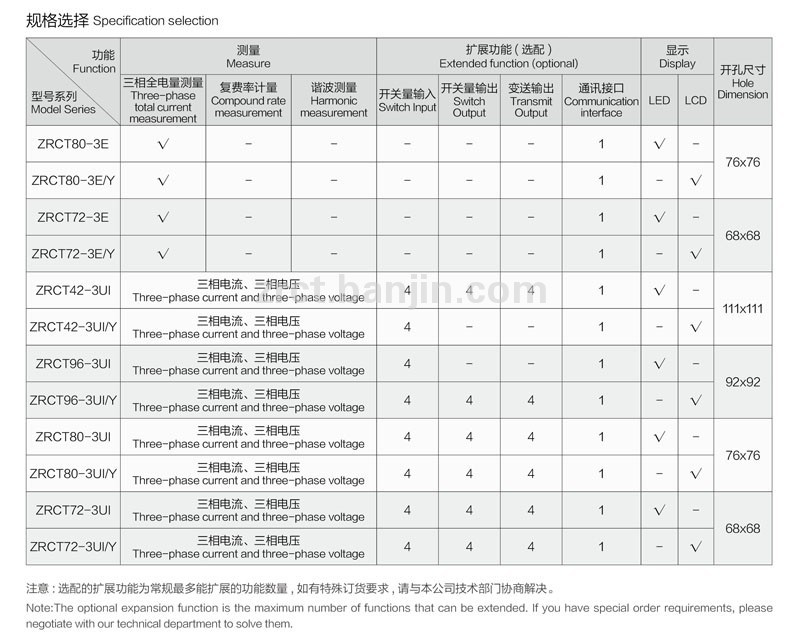

注意:选配的扩展功能为常规多能扩展的功能数量,如有特殊订货要求,请与本公司技术部门协商解决。

Note:The optional expansion function is the maximum number of functions that can be extended. If you have special order requirements, please negotiate with our technical department to solve them.

订货示例

订货时，应写明所需的产品型号，信号输入及功能模块等相关内容

Ordering example

When ordering, the product type, signal input and function module should be specified.

例1

型号:ZRCT42-3E;

外形尺寸:120×120;

电源:AC 220V/50Hz;

信号输入:三相四线,AC 3x220/380V，AC 100A/5A

其他:其他出厂预设置(未作说明则按照默认设置出厂)

Example 1

Model: ZRCT42-3E;
